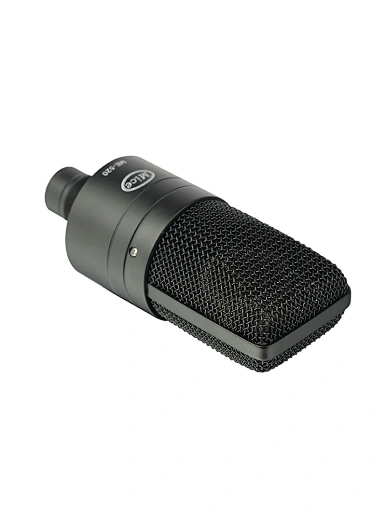

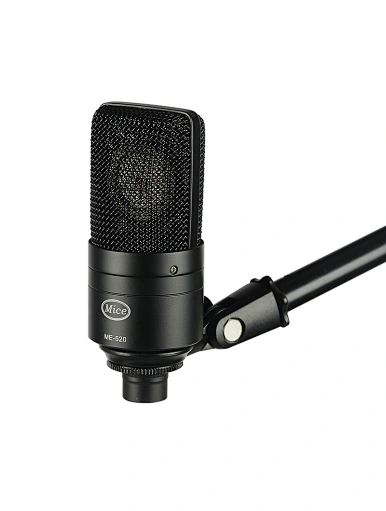

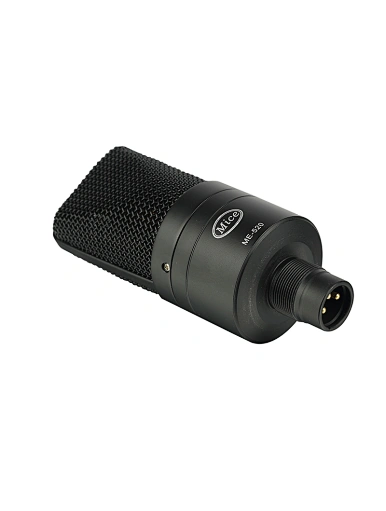

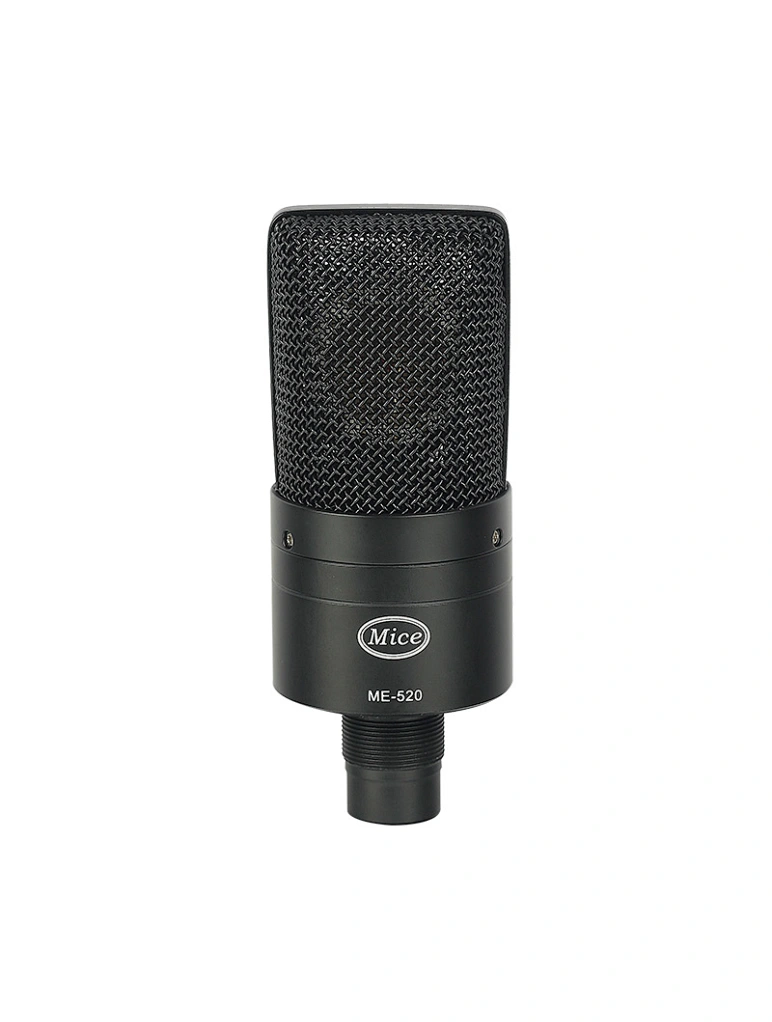

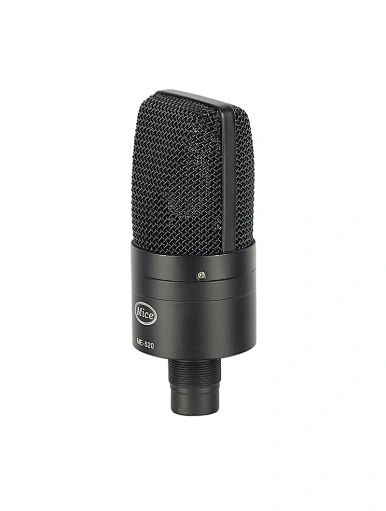

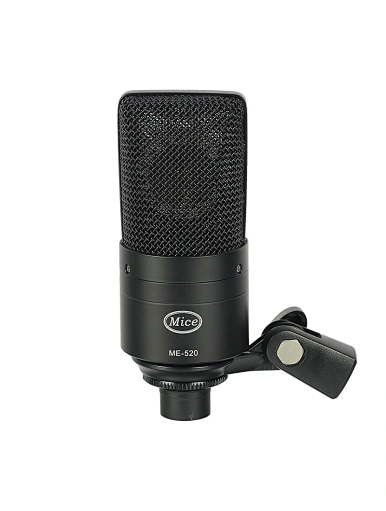

Large Diaphragm Condenser Studio Microphone
ME-520
ME-520 is a professional condenser mic with a perfect cardioid pickup pattern. The unique transformer-free circuit design can effectively reduce self-noise and enlarge dynamic range. The appearance of this mic adopts plating and oxygenation craftwork,you can choose your favourite color from so many colors.With this mic you can recording your charming sound and in the mean time enioy your entertainment.
Quantity
We offer OEM & ODM services.
——————————————————
Capsule：Ø34mm gold-plated diaphragm
Polar Pattern: Cardioid
Frequency Response:20Hz-20KHz
Sensitivity:-34dB±2dB(0dB=1V/Pa at 1kHz）
Output Impedance∶ 100Ω±20% （at 1kHz）
Load Impedance:≥1000Ω
Self Noise: 12dB A
Max.Input SPL:134 dB(at 1kHz≤1%T.H.D）
S/N Ratio: 82dB
Power Requirement: 48V Phantom Power
Current Consumption:3mA
Body Dimensions: Ø50.5x132mm
Net Weight:220g
——————————————————
