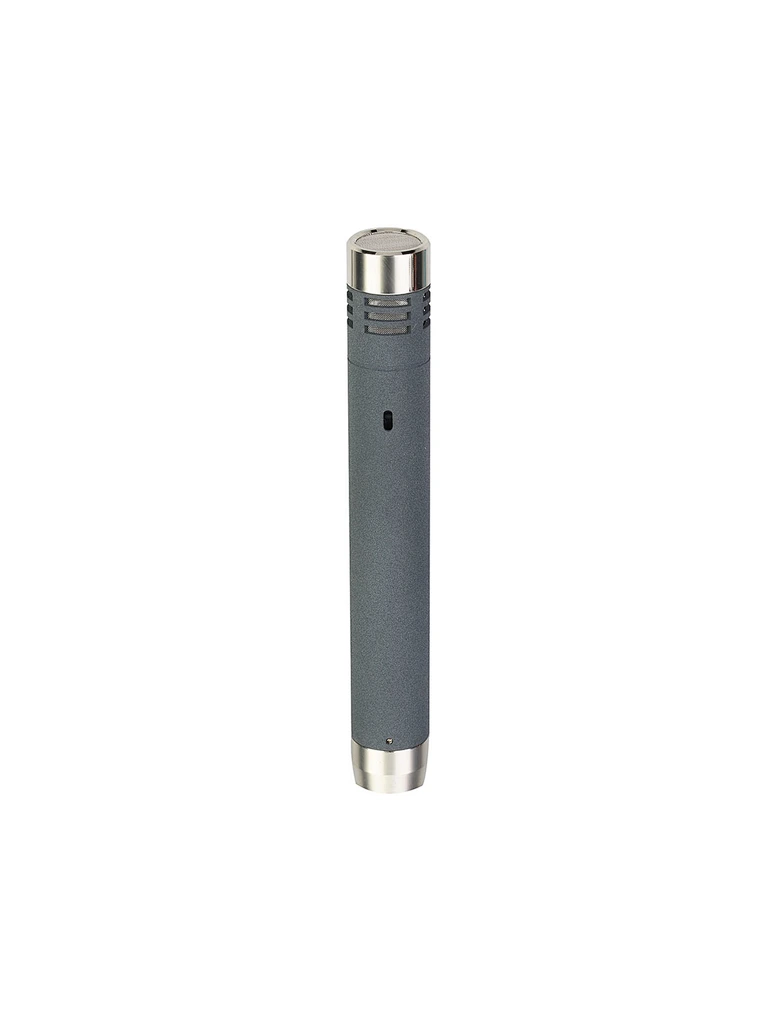

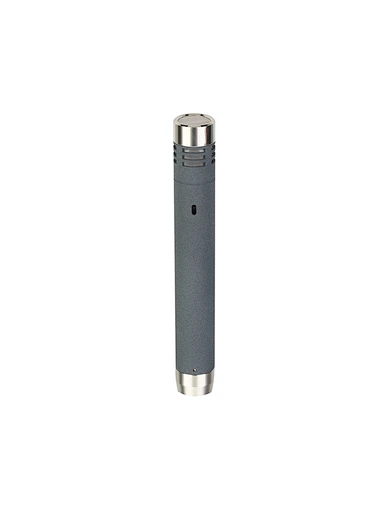

Instrument Condenser Microphone
MC-60
MC-60 is a small and durable pencil-type instrumental condenser microphone which uses 22mm gold-plated diaphragm capsule and adopts the design of no-transformer. It obtains the features such as a wide frequency response, high sensitivity and excellent transient response, etc. Its application is especially for musical instrument pick-up, such as orchestra, percussion, guitar, bass and piano,etc. The switch on the mic can be selected according to your request to be suitable for different recording situations.
Quantity
We offer OEM &ODM services.
———————————————
Capsule：Ø22mm gold-plated diaphragm
Polar Pattem:Cardioid
Frequency Response: 30Hz-18 kHz
Sensitivity: -38dB±2dB(0dB=IV/Pa at 1KHz)
Output Impedance∶100Ω±30%（at 1KHz）
Self Noise: 13dB A
Max.Input SPL: 130dB(at 1kHz=1%T.H.D)
S/N Ratio: 81dB
Low Frequency Attenuation: 100Hz/oct 12dB
Power Requirement: 48v Phantom Power
———————————————
Capsule：Ø22mm gold-plated diaphragm
Polar Pattem:Cardioid
Frequency Response: 30Hz-18 kHz
Sensitivity: -38dB±2dB(0dB=IV/Pa at 1KHz)
Output Impedance∶100Ω±30%（at 1KHz）
Self Noise: 13dB A
Max.Input SPL: 130dB(at 1kHz=1%T.H.D)
S/N Ratio: 81dB
Low Frequency Attenuation: 100Hz/oct 12dB
Power Requirement: 48v Phantom Power
