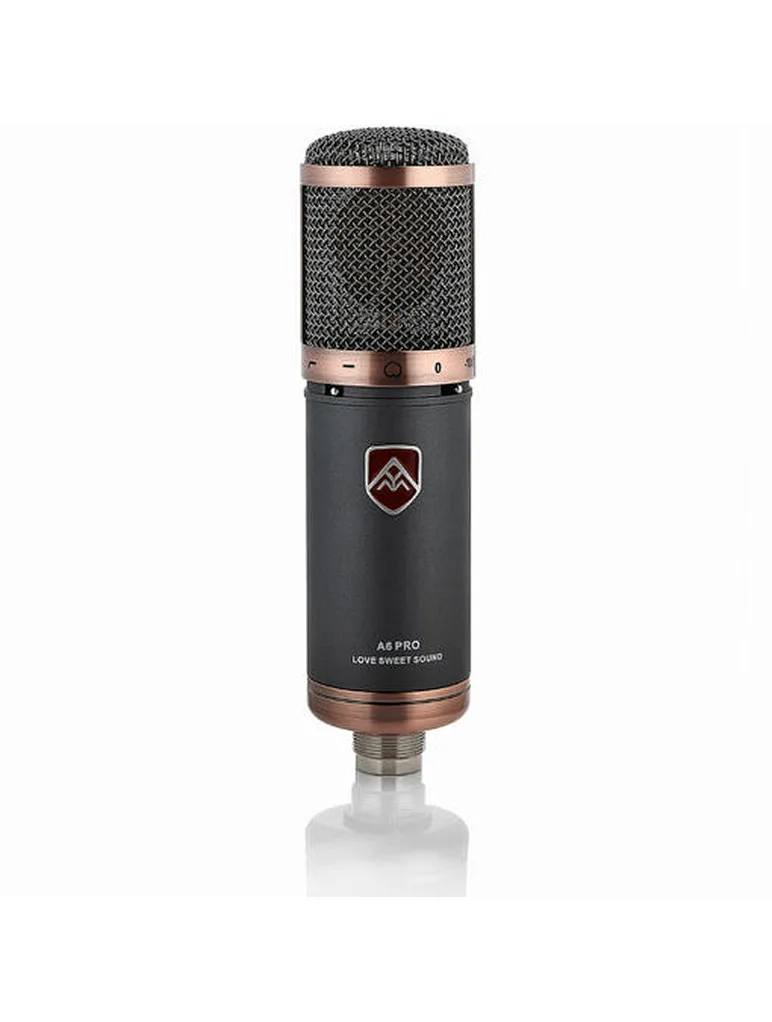

Condenser Microphone
A6 Pro
Our condenser microphone A6 PRO adopts PCB with high-quality components and gold-plated large diaphragm capsule internally. A6 has the features of good cardioid polar pattern, high-sensitivity output,low noise and wide dynamic range, etc. It is widely used for studio recording,broadcasting, stage performance, post-production of film and television works, and home recording, etc.
Quantity
We offer OEM &ODM services.
———————————————
Capsule：Ø34mm gold-plated diaphragm
Polar Pattern: Cardioid
Frequency Response:20Hz-20kHz
Sensitivity:-34dB±2dB(0dB=1V/Pa at lkHz)
Output Impedance∶200Ω±30%（at 1kHz）
Overload Impedance:≥1000Ω
Equivalent Noise level:11dB A
Max SPL:135dB(at1kHz≤1%T.H.D)
S/N Ratio:83dB
Voltage: 48V phantom power
Current Comsumption:3.2mA
Weight: 420g
———————————————
Capsule：Ø34mm gold-plated diaphragm
Polar Pattern: Cardioid
Frequency Response:20Hz-20kHz
Sensitivity:-34dB±2dB(0dB=1V/Pa at lkHz)
Output Impedance∶200Ω±30%（at 1kHz）
Overload Impedance:≥1000Ω
Equivalent Noise level:11dB A
Max SPL:135dB(at1kHz≤1%T.H.D)
S/N Ratio:83dB
Voltage: 48V phantom power
Current Comsumption:3.2mA
Weight: 420g
