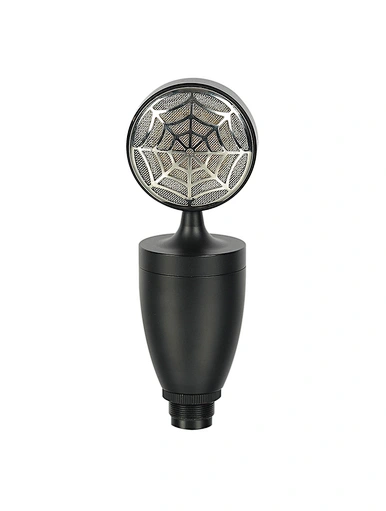

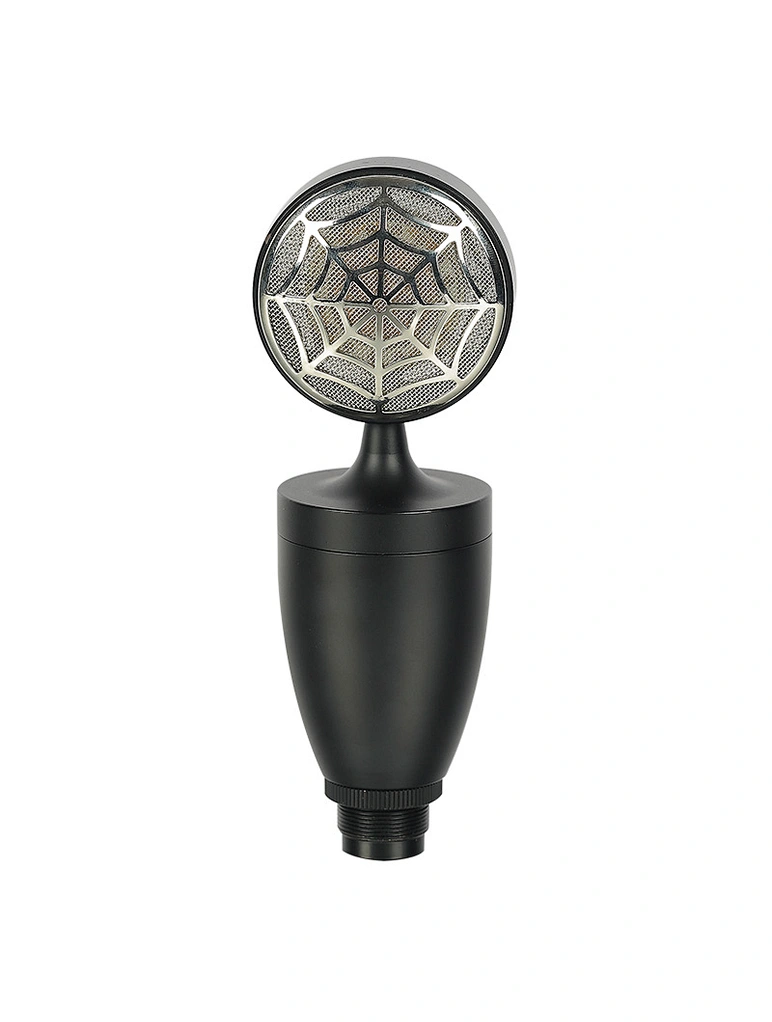

Studio Condenser Microphone
ZD-1
ZD-1 is a professional condenser mic with a perfect cardioid pickup pattern. The unique transformer-free circuit design can effectively reduce self-noise and enlarge the dynamic range. This microphone has perfect sound and low noise. By combining an excellent circuit and ideal housing design, this microphone has a high sensitivity, wide dynamic range, and frequency response, especially suitable for stage performance studio, personal film making, and many other similar situations.
Quantity
We offer OEM &ODM service.
———————————————
Capsule：Ø34mm double sided gold-plated diaphragm
Polar Pattern: Cardioid
Frequency Response:20Hz-20KHz
Sensitivity:-34dB±2dB(0dB=1V/Pa at 1kHz）
Output Impedance∶ 100Ω±20% （at 1kHz）
Load Impedance:≥1000Ω
Self Noise: 12dB A
Max.Input SPL:134 dB(at 1kHz≤1%T.H.D）
S/N Ratio: 82dB
Power Requirement: 48V Phantom Power
Current Consumption:3mA
Body Dimensions: Ø50.5x132mm
Net Weight:220g
———————————————
Capsule：Ø34mm double sided gold-plated diaphragm
Polar Pattern: Cardioid
Frequency Response:20Hz-20KHz
Sensitivity:-34dB±2dB(0dB=1V/Pa at 1kHz）
Output Impedance∶ 100Ω±20% （at 1kHz）
Load Impedance:≥1000Ω
Self Noise: 12dB A
Max.Input SPL:134 dB(at 1kHz≤1%T.H.D）
S/N Ratio: 82dB
Power Requirement: 48V Phantom Power
Current Consumption:3mA
Body Dimensions: Ø50.5x132mm
Net Weight:220g
