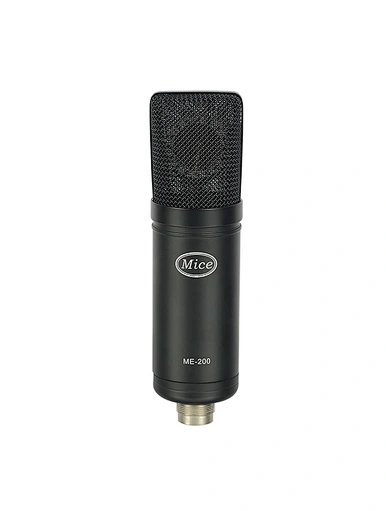

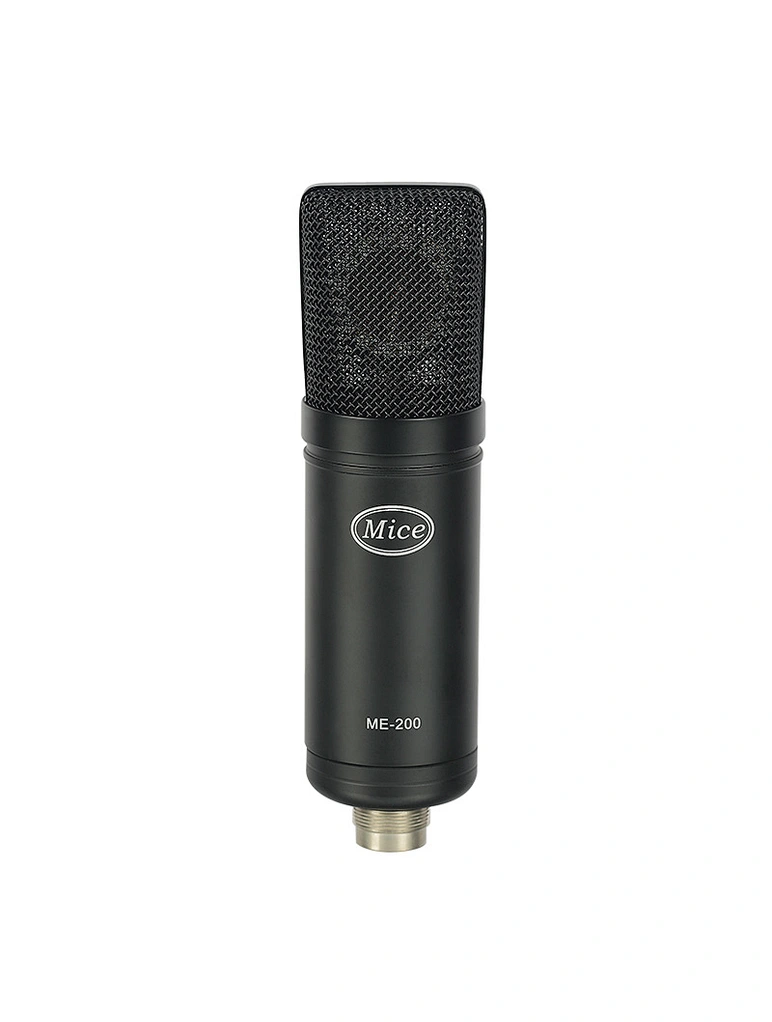

Recording Condenser Microphone
ME-200
ME-200 is a professional recording condenser microphone, which utilises the cardioids polar pickup pattern, especially suitable for such professional situations as studios, recording studios, broadcasting stations and stage performances.
Quantity
We offer OEM &ODM service.
———————————————
Capsule：Ø34mm gold-plated diaphragm
Polar Pattern: Cardioid
Frequency Response: 20Hz-2OkHz
Sensitivity: -34dB±2dB (0dB=1V/Pa at 1kHz)
Output Impedance:150Ω±30%（at 1kHz)
Load Impedance∶≥1000Ω
Self Noise: 11dB A
Max.Input SPL:132dB (at 1k Hz≤1%T.H.D)
S/N Ratio:83dB
Phantom Power Requirement: 48V Phantom Power Electrical
Current:3mA
———————————————
