Recording Condenser Microphone

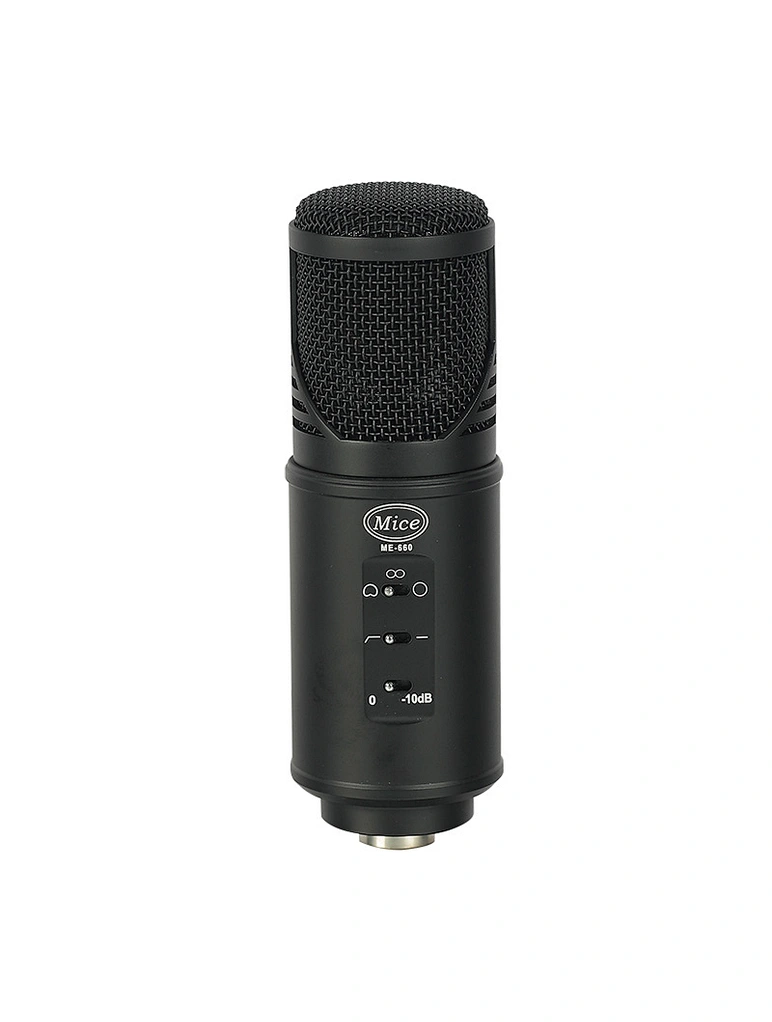

ME-660
ME-660 is a classical recording condenser mic which utilises three-dimensional design. The mic looks more charming thanks to its unique appearance and different from the traditional switch design. With three pickup patterns, cardioid/bi/omni-directional, this classical condenser recording mic can be widely used for recording studios,broadcasting stations,stage performances and other similar professional situations.
Quantity
We offer OEM &ODM services.
———————————————
Capsule：Ø34mm double sided gold-plated diaphragm capsule
Polar Pattern: Cardioid/Bi/Omni
Element: Pressure Gradient Transducer
Frequency Response: 20Hz-20kHz
Sensitivity: -36dB±2dB(0dB=1V/Pa at 1kHz)
Output Impedance∶150Ω±20%（at 1kHz）
Load Impedance: ≥1000 Q
Self Noise: 12dBA
Max.Input SPL: 135dB(at 1kHz≤1%T.H.D)
S/N Ratio: 82dB
Power Requirement: 48V Phantom Power
Current Consumption: 3mA
Body Dimensions∶ Ø58x160mm
———————————————
Capsule：Ø34mm double sided gold-plated diaphragm capsule
Polar Pattern: Cardioid/Bi/Omni
Element: Pressure Gradient Transducer
Frequency Response: 20Hz-20kHz
Sensitivity: -36dB±2dB(0dB=1V/Pa at 1kHz)
Output Impedance∶150Ω±20%（at 1kHz）
Load Impedance: ≥1000 Q
Self Noise: 12dBA
Max.Input SPL: 135dB(at 1kHz≤1%T.H.D)
S/N Ratio: 82dB
Power Requirement: 48V Phantom Power
Current Consumption: 3mA
Body Dimensions∶ Ø58x160mm
