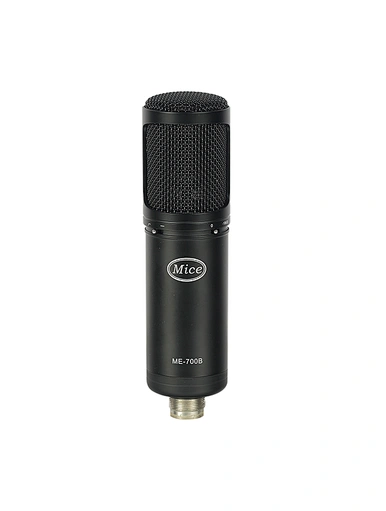

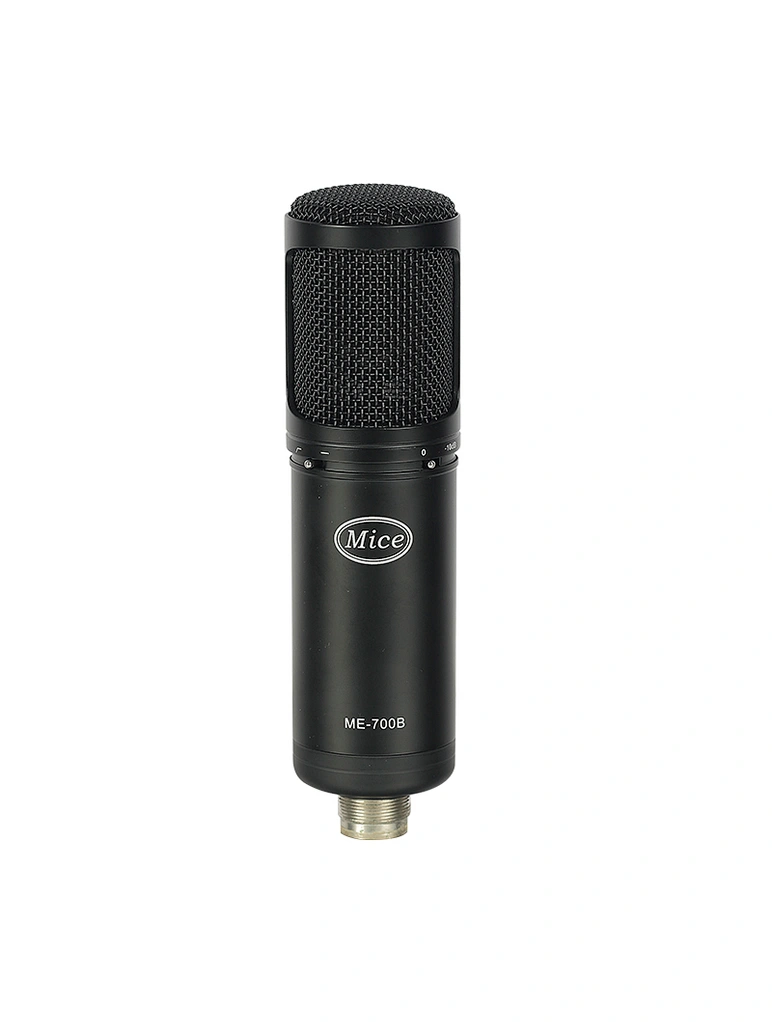

Recording Condenser Microphone
ME-700B
ME-700B is a professional recording condenser microphone with Uni-directional pickup pattern .With a very low self-noise and wide dynamic range. ME-700B can meet the requirement of high quality recording. Equipped with the additional functions of low frequency and-10dB attenuation switches, this mics can low the intervene of low frequency effectively.Besides,this mics has a vivid and brilliant tone, fast transient response and low self-noise.
Quantity
We offer OEM &ODM service.
———————————————
Capsule：Ø34mm gold-plated diaphragm capsule
Polar Pattern: Cardioid
Frequency Response: 20Hz-20kHz
Sensitivity: -36dB+2dB(0dB=1V/Pa at 1kHz)
Output Impedance∶200Ω±20%（atIkHz）
Load Impedance: ≥1000Ω
Self Noise: 11dB A
Max.Input SPL: 130 dB(at 1kHz≤1%T.H.D)
S/N Ratio: 83 dB
Power Requirement: 48V Phantom Power
Current Consumption: 3mA
Body Dimensions: Ø48x188mm
———————————————
