Conference Microphone

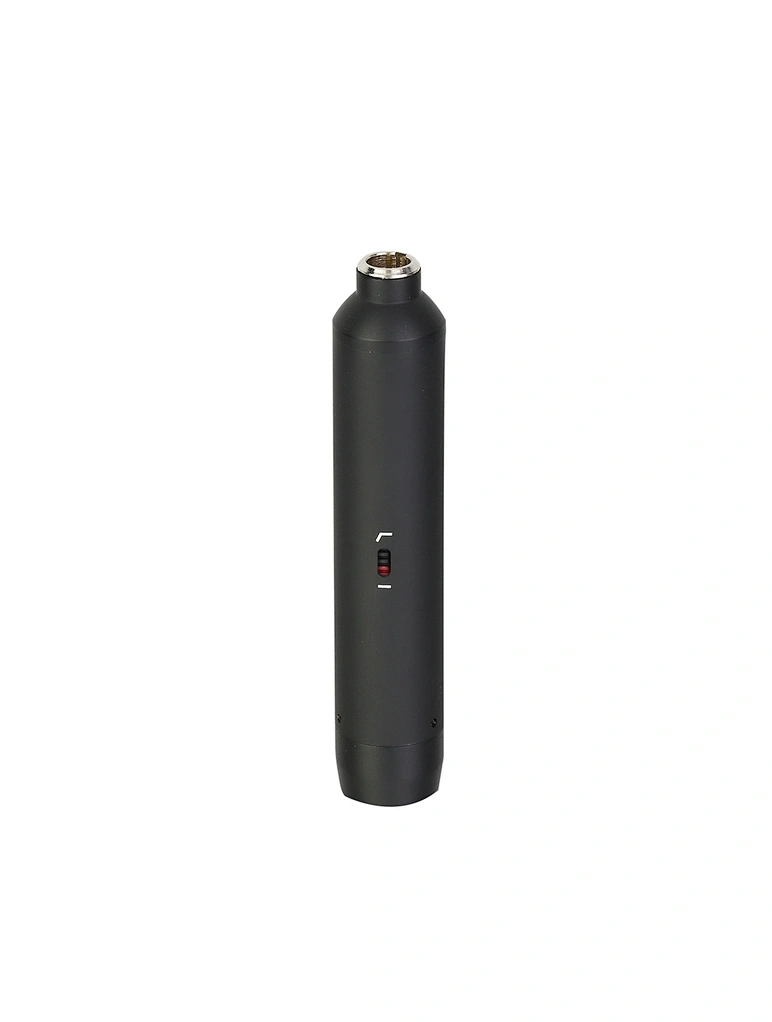

MC-70
MC-70 applies 22mm gold-plated diaphragm capsule and transformer less design, so it has a wide frequency response, high sensitivity and excellent transient characteristics of the ability to reflect, especially suitable for instrument pick up. Such as orchestra, percussion, guitar, bass, piano, etc, also it can be used for matching. The capsule can be detached.
Quantity
We offer OEM &ODM services.
———————————————
Capsule：Ø22mm gold-plated diaphragm
Polar Pattem: Cardioid
Frequency Response: 30Hz-18kHz
Sensitivity: -38dB±2dB(0dB=IV/Pa at 1KHz)
Qutput Impedance:100Ω±30%(at 1KHz)
Self Noise: 13dBA
Max.input SPL: 130dB(at 1kHz=1%T.H.D)
S/N Ratio: 81dB
Low Frequency Attenuation: 100Hz/oct 12dB
Power Requirement: 48v Phantom Power
———————————————
Capsule：Ø22mm gold-plated diaphragm
Polar Pattem: Cardioid
Frequency Response: 30Hz-18kHz
Sensitivity: -38dB±2dB(0dB=IV/Pa at 1KHz)
Qutput Impedance:100Ω±30%(at 1KHz)
Self Noise: 13dBA
Max.input SPL: 130dB(at 1kHz=1%T.H.D)
S/N Ratio: 81dB
Low Frequency Attenuation: 100Hz/oct 12dB
Power Requirement: 48v Phantom Power
