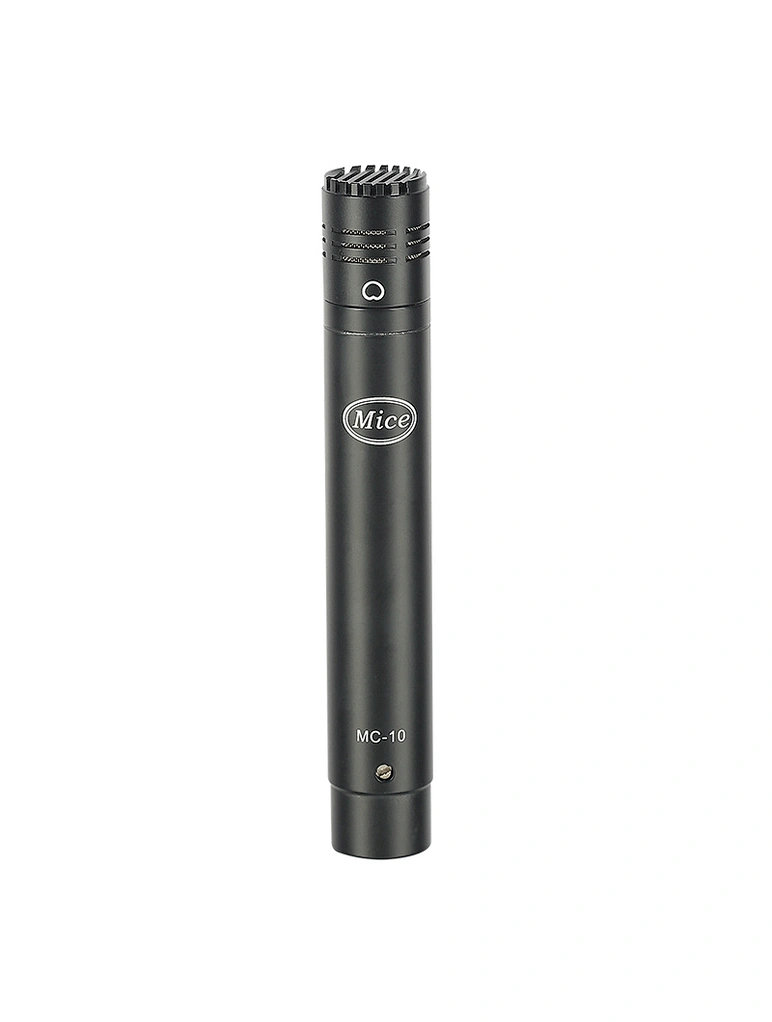

Instrument Condenser Microphone
MC-10/10C/10Q
MC-10 instrument condenser mic has a beautiful appearance.It utilises Ø16mm back electret capsule and excellent electric circuit of the transformer output. With the characteristics of high sensitivity and low noise, MC-20 can be widely used to pickup the sound of orchestra instruments, piano and other instruments.
Quantity
We offer OEM &ODM services.
———————————————
Capsule：Ø16mm back electret capsule
Polar Pattem:Cardioid
Frequency Response: 30Hz-18KHz
Sensitivity: -38dB±3dB(0dB=IV/Pa at 1KHz)
Output Impedance: 100Ω±30%（at 1KHz）
Self Noise: 12dB A
Max.Input SPL: 135dB(at 1kHz≤1%T.H.D)
S/N Ratio: 82dB
Power Requirement: 9-52V Phantom Power
———————————————
