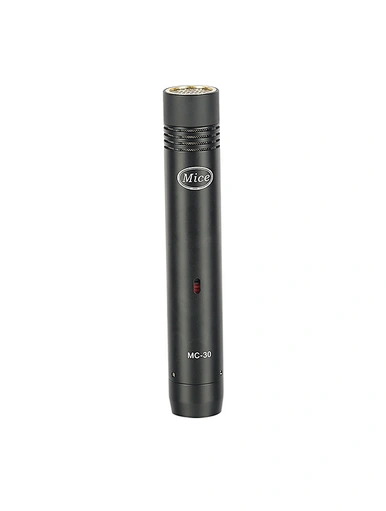

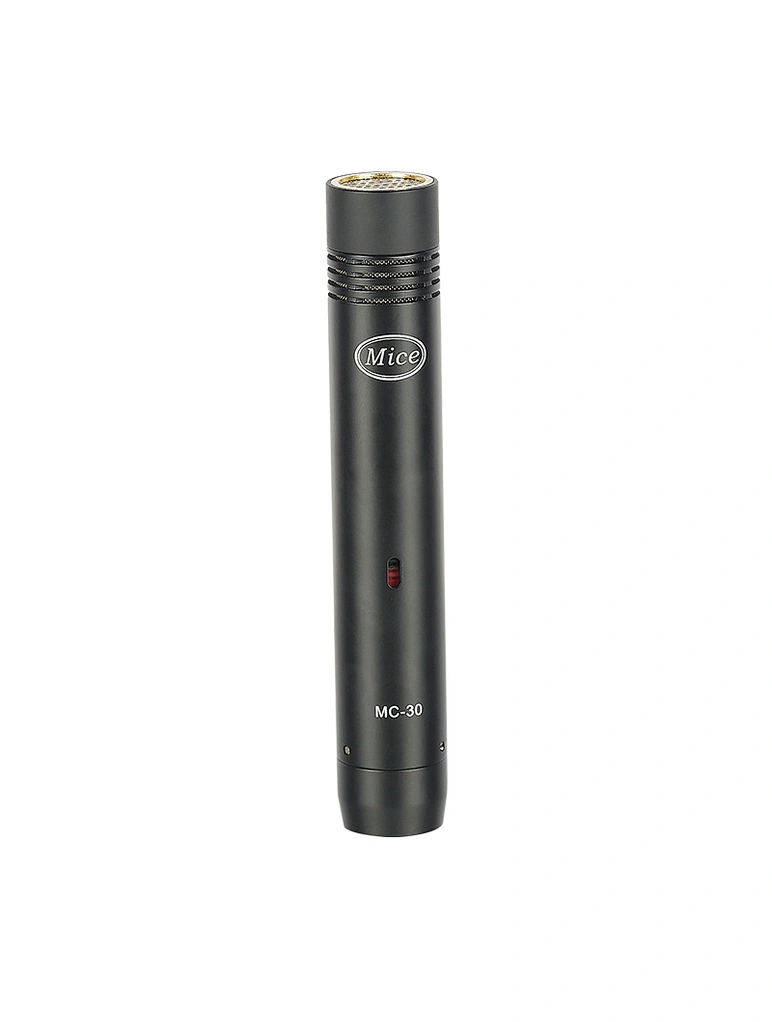

Instrument Condenser Microphone
MC-30
MC-30 instrument condenser microphone has a beautiful appearance. It adopts the pressure gradient transducercartridge,with avapor -deposited gold diaphragm,the mic has a cardioid polar pattern.With characteristics of high sensitivity, wide frequency response, small distortion and low self-noise,this miccan make clearand natural sound, meet the requirement of various kinds of audio equipments.
Quantity
We offer OEM &ODM services.
———————————————
Capsule：Ø22mm gold-plated diaphragm
Polar Pattem:Cardioid
Frequency Response: 30Hz-18kHz
Sensitivity: -38dB±2dB(0dB=I/Pa at 1KHz)
Output Impedance: 100Ω±30%(at 1KHz)
Self Noise: 13dB A
Max.inputSPL: 130dB(at1kHz=1%T.H.D)
S/N Ratio: 81dB
Low Frequency Attenuation: 100Hz/oct 12dB
Power Requirement: 48v Phantom Power
———————————————
Capsule：Ø22mm gold-plated diaphragm
Polar Pattem:Cardioid
Frequency Response: 30Hz-18kHz
Sensitivity: -38dB±2dB(0dB=I/Pa at 1KHz)
Output Impedance: 100Ω±30%(at 1KHz)
Self Noise: 13dB A
Max.inputSPL: 130dB(at1kHz=1%T.H.D)
S/N Ratio: 81dB
Low Frequency Attenuation: 100Hz/oct 12dB
Power Requirement: 48v Phantom Power
