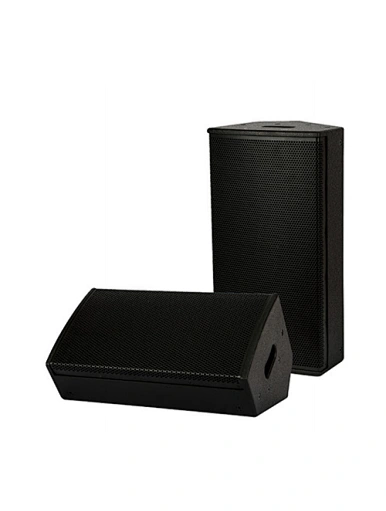

Mutifunctional performing arts full-range speaker
VC10
VC10 is a full-range loudspeaker with high dynamics and superior performance, suitable for sound reinforcement in bars, nightclubs and other entertainment venues. It is equipped with a 10-inch woofer; a 44.5mm (1.75-inch) diameter polymer diaphragm compression tweeter. The entire speaker system can withstand 400W of input power. The 85X60° coverage angle provides even and flat coverage regardless of horizontal or vertical placement. Passive crossovers with high slope attenuation minimize band overlap. The cabinet is made of high-quality 15mm-thick multi-layer plywood, and the surface is treated with black wear-resistant spray paint. The cabinet is a trapezoidal multi-angle structure, which can be used as a monitor. It is equipped with two Neutrik NL4MP interfaces to connect with other equipment. The cabinet has 15 M8 thread suspension points, 4 M8 screws for KTV hanger installation, and a pole socket with a diameter of 35mm. The driver unit is protected by a steel mesh with dust-proof, which is a very professional appearance design.
Quantity
Technical parameters
speaker unit: 12-inch woofer,
1.75-inch polymer diaphragm compression driver
Frequency response: 50Hz-20kHz
Horizontal directivity: 85 degree
Vertical directivity: 60 degree
Max SPL:125dB
Impedance:8 Ω
Sensitivity 1w/1m: 99dB
Cabinet material: 15mm multi-layer plywood
Surface treatment: black wear-resistant paint
Dimensions (L x W x H): 300mm x 295mm x 540mm
Weight: 32KG
