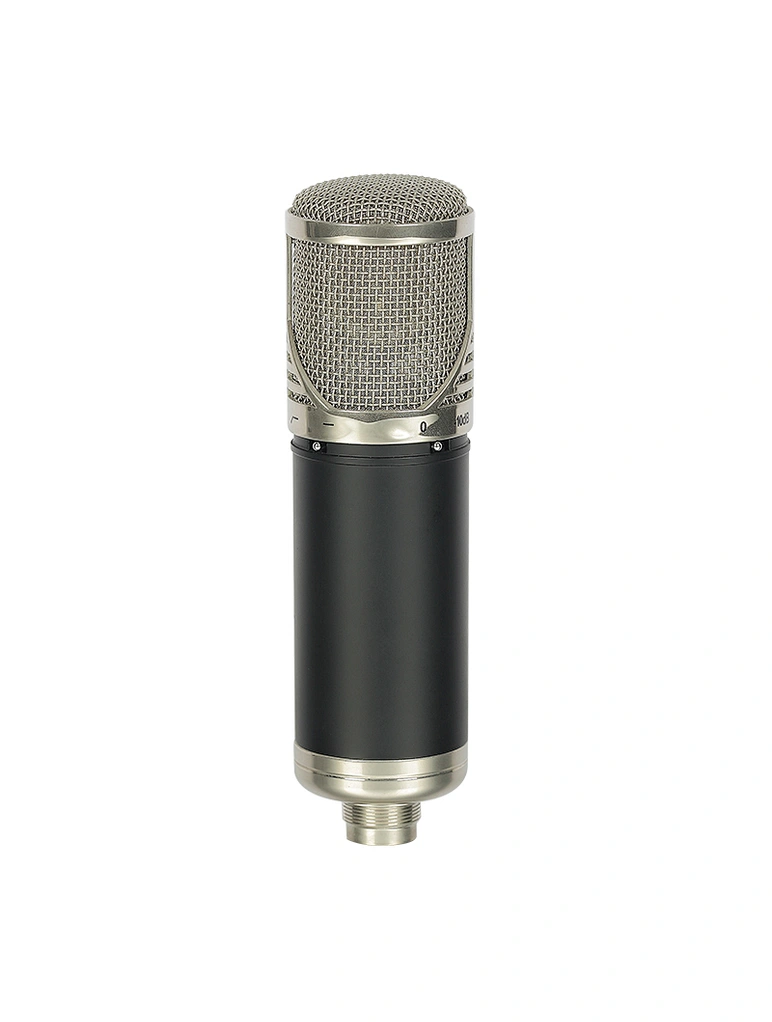

Recording Condenser Microphone
ME-710B/710C
ME-710B/710C are a series of classical condenser studio microphones,ME-710 with cardioid pickup pattern and ME-710C with three pickup patterns cardioid/bi/omni-directional. These classical condenser recording mics can be widely used for recording studios, broadcasting stations,stage performances and other similar professional situations.
Quantity
We offer OEM &ODM services.
———————————————
Capsule：Ø34mm double sided gold-plated diaphragm capsule
Polar Pattern: Cardioid/Bi/Omni
Frequency Response: 20Hz-20kHz
Sensitivity: -36dB±2dB(0dB=IV/Pa at 1kHz)
OutputImpedance: 150Ω±20%（at 1kHz）
Load Impedance∶≥1000 Ω
Self Noise: 12dB A
Max.Input SPL: 130 dB(at 1kHz≤1%T.H.D)
S/N Ratio:82dB
Power Requirement: 48V Phantom Power
Current Consumption: 3 mA
Body Dimensions: Ø48x192mm
———————————————
Capsule：Ø34mm double sided gold-plated diaphragm capsule
Polar Pattern: Cardioid/Bi/Omni
Frequency Response: 20Hz-20kHz
Sensitivity: -36dB±2dB(0dB=IV/Pa at 1kHz)
OutputImpedance: 150Ω±20%（at 1kHz）
Load Impedance∶≥1000 Ω
Self Noise: 12dB A
Max.Input SPL: 130 dB(at 1kHz≤1%T.H.D)
S/N Ratio:82dB
Power Requirement: 48V Phantom Power
Current Consumption: 3 mA
Body Dimensions: Ø48x192mm
