Stereo Diaphragm Condenser Microphone
SCM-2

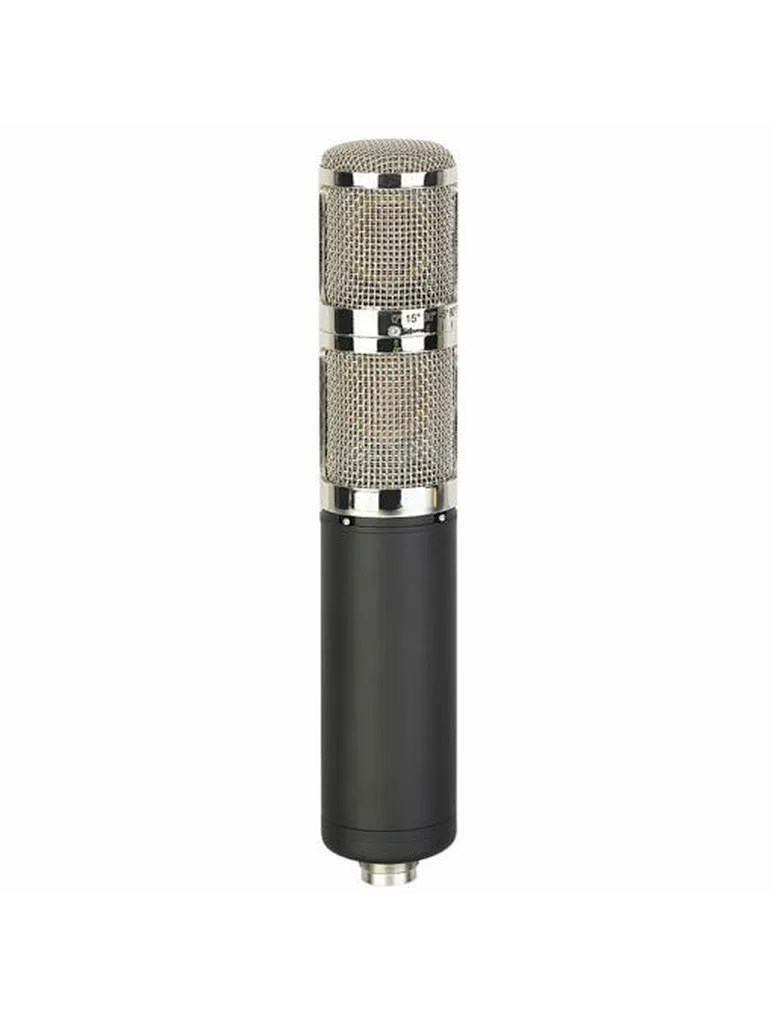

SCM-2 is a stereo condenser mic which comprised of two separate dual-membrane solid state microphones contained within a single housing.Its capsules are mounted in close proximity on a vertical axis. The upper capsule assembly has the ability to rotate 270 degrees horizontally, relative to the low capsule. Also, there is a relative fixed position per interval 30 degrees.
*Included with the SCM-2 microphone are a dedicated 5-pin XLR cable, power supply, foam windscreen, special shock-mount and aluminum carrying case.
*Included with the SCM-2 microphone are a dedicated 5-pin XLR cable, power supply, foam windscreen, special shock-mount and aluminum carrying case.
Quantity
We offer OEM &ODM services.
———————————————
Capsule：2pcs Ø34mm double sided gold-plated diaphragm
Polar Pattern: Cardioid
Frequency Response: 20Hz-20kHz
Sensitivity:-34dB±2dB(0dB=IV/Pa at 1 kHz)
Output Impedance∶ 150Ω±30%（at 1 kHz）
Load Impedance∶≥1000Ω
Self Noise: 15dB A
Max.Input SPL:132dB (at 1kHz≤1%T.H.D)
S/N Ratio: 83dB
Phantom Power Requirement: 48V Phantom Power
———————————————
Capsule：2pcs Ø34mm double sided gold-plated diaphragm
Polar Pattern: Cardioid
Frequency Response: 20Hz-20kHz
Sensitivity:-34dB±2dB(0dB=IV/Pa at 1 kHz)
Output Impedance∶ 150Ω±30%（at 1 kHz）
Load Impedance∶≥1000Ω
Self Noise: 15dB A
Max.Input SPL:132dB (at 1kHz≤1%T.H.D)
S/N Ratio: 83dB
Phantom Power Requirement: 48V Phantom Power
